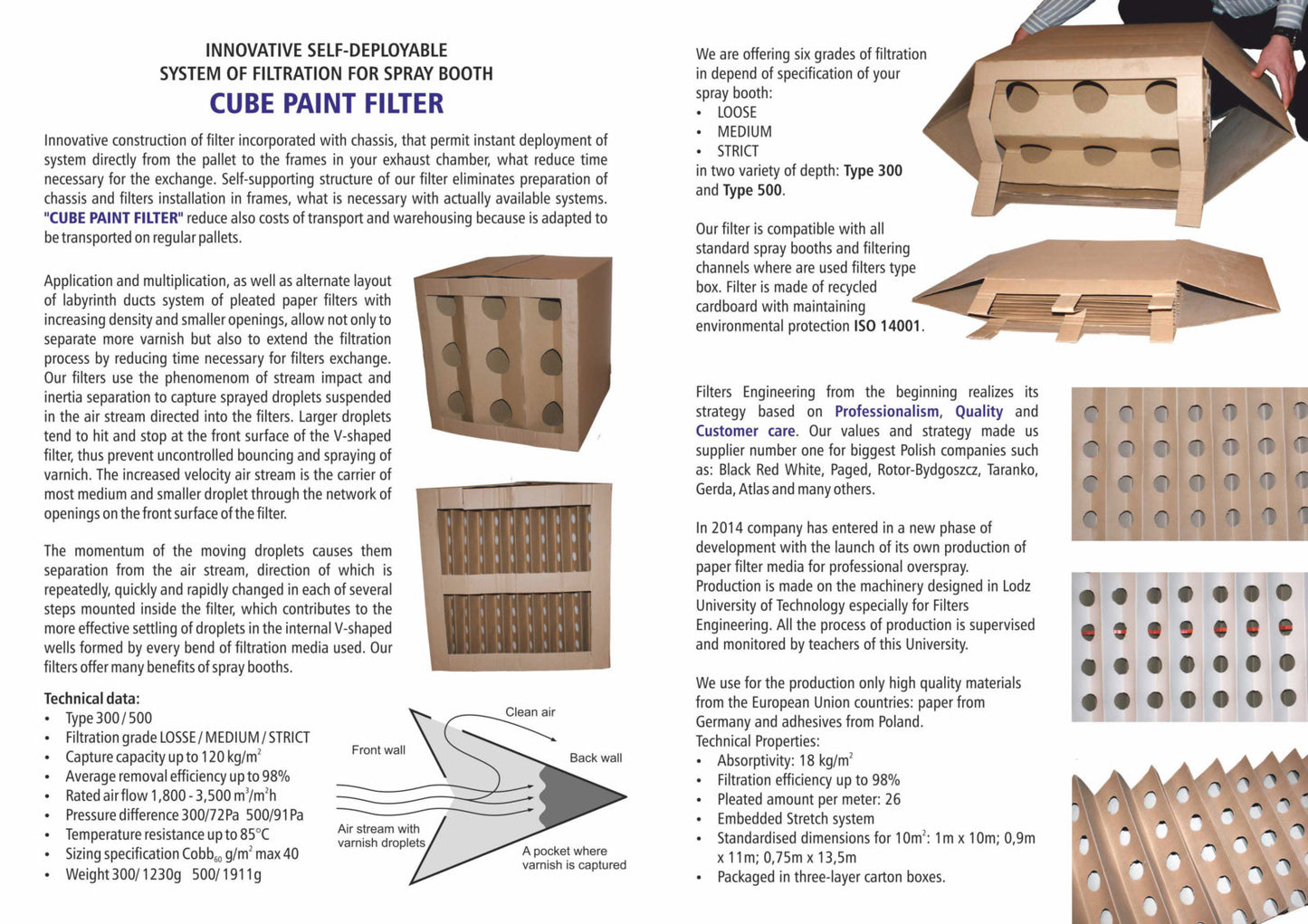

The unprecedented design of the filter combined with the housing allows for immediate unfolding when removing it from the pallet and immediate placement in the paint wall cassette, thus shortening and facilitating the replacement time, the self-supporting structure eliminates the troublesome unfolding of housings and inserting the filter set into them, as previously offered on the market. The design also eliminates the troublesome and expensive transport and storage on non-standard pallets like most filters of this type, the CUBE PAINT FILTER filter is adapted for transport on pallets.

The use and multiplication and alternating arrangement of the labyrinth channel system of pleated filters with increasing density and smaller holes allows not only to separate a larger amount of paint but also to extend the filtration process, eliminating the need to stop the paint shop for replacement. Capture at the level of 120 kg / m 2. The filters use the phenomenon of jet impact and inertial separation to capture sprayed droplets suspended in the air stream directed by the filters. Larger droplets tend to hit and stop on the front surface of the V-shaped filter, thus preventing the phenomenon of bouncing and their spraying. The air stream with increased speed is the carrier of the vast majority of medium and smaller droplets through the network of holes located on the front surface of the filter.

The forward momentum of the droplets causes them to separate from the air stream, the direction of which is repeatedly, quickly and violently changed at each of several stages mounted inside the filter, which contributes to even more effective deposition of the droplets in the internal V-shaped recesses formed by each bend of the cartridge. The filters we offer provide many benefits to operators of spray booths applying most industrial coatings and adhesives.

Technical data:

• Size 300 / 500
• Filtration levels LOSSE / MEDIUM / STRICT
• Capture capacity up to 120 kg/m2
• Filtration rate up to 98%
• Air flow 1,800 – 3,500 m3/m2h
• Pressure difference 300/ 72Pa 500/ 91Pa
• Temperature resistance up to 85 degrees Celsius
• Surface absorption Cobb60 g/m2 max 40
• Weight 300/1230g 500/1911g
